The following guide contains information relating to common technical issues with the OnePacs Study Retriever.  Please follow this guide step by step to diagnose and correct issues that you may experience.

General Troubleshooting

Verify that the minimum system requirements are satisfied.

OnePacs software products may not function correctly on systems that don't meet the technical and software requirements.

Additionally, verify that anti-virus software excludes the install directory for the Study Retriever.

Verify basic network connectivity.
  • Verify that you can log into the OnePacs web application from this computer.
  • Verify that there is sufficient bandwidth using a tool such as speedof.me.  OnePacs requires a minimum of 1Mbps of download bandwidth and recommends 5Mbps or greater.
Verify you are using the latest version of the study retriever.

If not, please upgrade to the latest version.

Is the Study Retriever running?

When started there will be a OnePacs Study Retriever icon in the Windows system tray on the bottom right of the screen.  If the study retriever is not running attempt to start it by executing the "Restart the OnePacs Study Retriever" script on the desktop.

Are there valid DICOM destinations in the Study Retriever?

Verify at least one selected DICOM destination has a status of "Ok".   Right click on the system tray icon.  Select "Preferences"  and then the destinations tab.  Select the appropriate destination and click "Test."  If the user is using a third-party viewer like Osirix or eFilm, assure that the viewer is started and that the configuration is correct.

Studies are not automatically downloading.
  • Right click on the Study Retriever system tray icon.  Select "Preferences" and then click on the "General" tab.   If pre-caching is desired, make sure "automatically download studies" is checked.

  • Click "Validate" to validate the worklist search string.

  • By default, the Study Retriever only downloads cases that are assigned to the user.  If the user desires to pre-fetch unassigned cases, a change to the worklist query is required.  To download unassigned cases as well as cases specifically assigned to the user, replace

    and assignedToUser = '$USER'

    with

    and (assignedToUser = '$USER' or assignedToUser is null)
The Worklist does not detect that the Study Retriever is running (monitor icons remain blue, prompted to install the workstation).
  • Enter the following address in your web browser.   https://localhost.onepacs.com:8091/getConfiguration?callback=a
    • This should bring up a blank page, but should not bring up an unable to connect page.  If it does not, check the windows host file for a misconfiguration.   (The line 127.0.0.1   localhost.onepacs.com should exist on its own line in the file C:\Windows\System32\drivers\etc\hosts)
    • If you are using Internet Explorer 11.0.9600.16384 please update to the latest version of Internet Explorer by installing Windows updates.  Installing Firefox is a different workaround.
    • There have been isolated cases of the browser not accepting the Study Retriever's security certificate.  A workaround is to enter to the above address in the browser, and manually accept the certificate.
  • Some browser add-ons disable the ability of the browser to communicate via script tag proxy.  Disable such add-ons (or add exceptions for *.onepacs.com) and restart the browser.
  • Internet Explorer may be blocked from communicating with the Study Retriever if SSL 2.0 is enabled.  Disable it in Internet Options -> Advanced -> Security.

Mac OS X Troubleshooting

Slow local network performance

In OS X network traffic over the localhost interface (loopback) can be extremely slow due to the default MTU size.    If this occurs, the following command may be useful, to run after each reboot.

sudo ifconfig lo0 mtu 9000
OsiriXTM is repeatedly reloading the viewer when used with the Windows study retriever (OsiriX XML-RPC Integration)

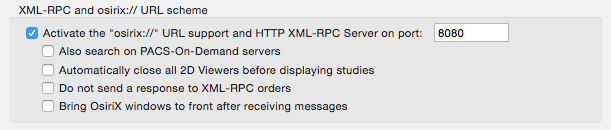

In Osirix -> Preferences -> Listener make sure the following options are unselected

  • Automatically close all 2D viewers...
  • Bring OsiriX windows to the front...


OsirixTM is a trademark of Pixmeo SARL. No endorsement or affiliation of Pixmeo by/with OnePacs, or of OnePacs by/with Pixmeo, is implied.
