OnePacs Web Viewer supports the display of DICOM Softcopy Presentation States (PR). Presentation states are automatically applied to referenced images on display.
The following presentation state modules are currently supported:
- Relationship Module, describes images which the presentation state is applied to.
- Displayed Area Module, describes the specified area space of the image to be displayed.
- Spatial Transformation Module, describes the specified rotation and flipping values of the image.
- Softcopy VOI LUT Module, describes the specified Window Center and Window Width of the image. Note that VOI LUT data is currently not supported.
- Graphic Annotation Module, describes the specified graphic and text annotations to be drawn on the image. Note that interpolated and filled graphics, and open polygons are currently not supported.

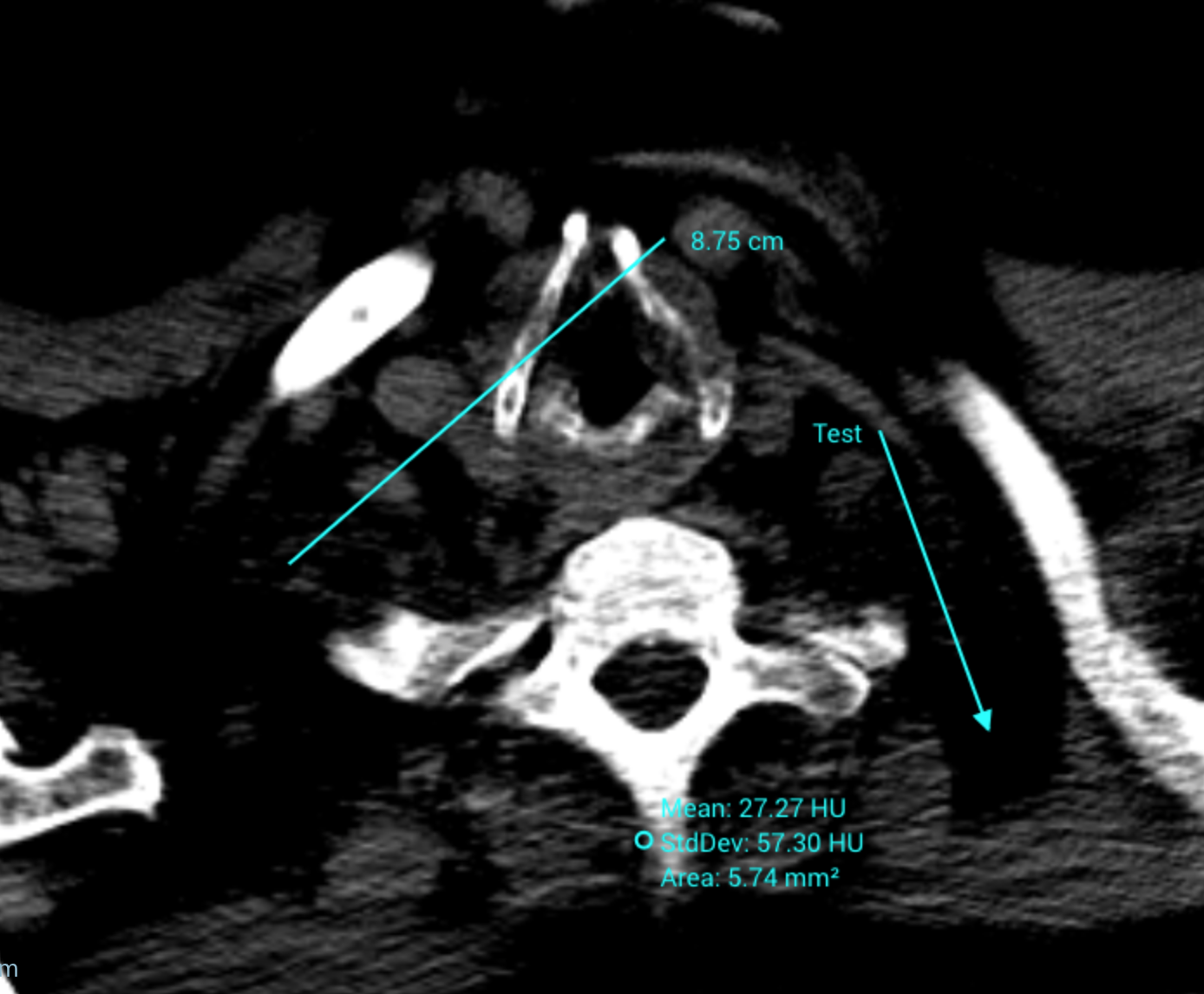

All graphic and text annotations drawn by DICOM Softcopy Presentation State (PR) are editable and colored Aqua (light blue).
